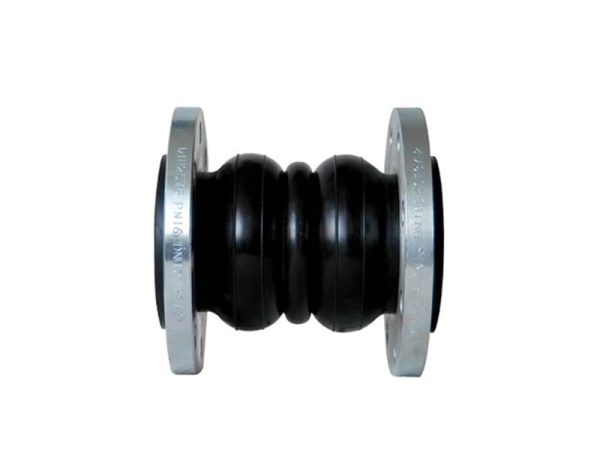

KXT-S Flexible Dual-Spherical Rubber Joint
Features:
Size: 1-1/4”~64”
Pressure Rating: PN10/PN16/PN25
Material: NR/ EPDM/NBR, Flange: Q235,304,316
Design Standard: GB/T26121-2010
Application medium: Water, Oil,Gas
Application Temperature: -15℃–+115℃（ -30℃–+250℃ ）
KSh1,000 KSh1,500
Features:
Size: 1-1/4”~64”
Pressure Rating: PN10/PN16/PN25
Material: NR/ EPDM/NBR, Flange: Q235,304,316
Design Standard: GB/T26121-2010
Application medium: Water, Oil,Gas
Application Temperature: -15℃–+115℃（ -30℃–+250℃ ）
